Mobile Mark GPS Antenna For More Wireless Applications

June 11, 2010

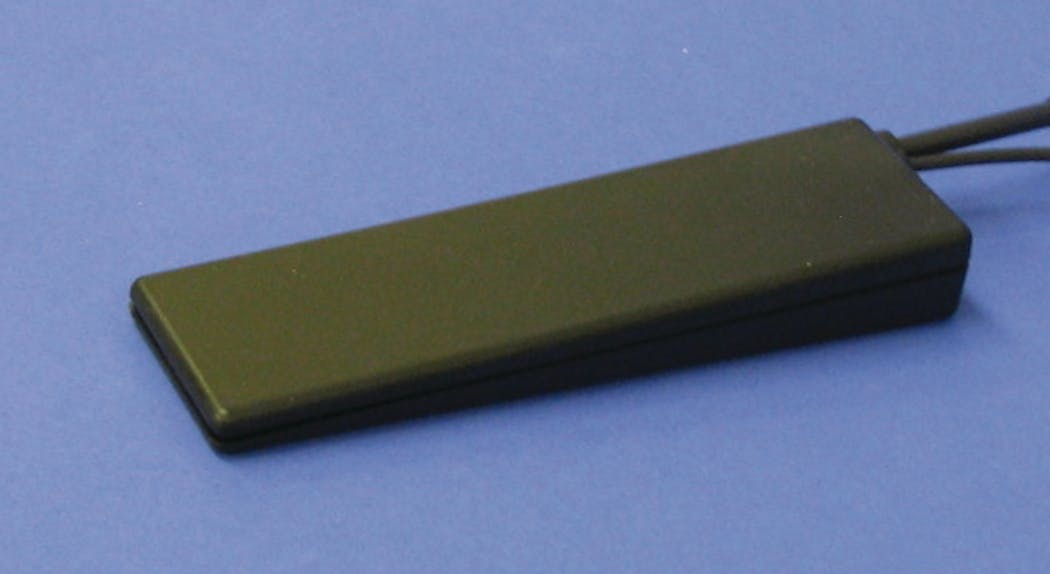

Mobile Mark has recently introduced a Wideband Covert Antenna for GPS Tracking designed to cover more wireless applications.  This two-cable antenna combines two applications at a time: GPS on one cable and any one of several wireless data applications on the other cable.

The CVW Series Wideband Covert Antennas stands out from other Mobile Mark Covert Antenna Series in that it is extremely broadbanded and covers worldwide cellular bands from 800-960 MHz and 1700-2200 MHz, including UMTS and AWS.  It has excellent performance characteristics and performs well across the entire band.

The antenna offers 2.5 dBi peak gain on the Cellular /Data bands.  For GPS, the performance is 26 dB amplifier gain with 5 dBi RHCP nominal antenna gain.  The antennas have low noise figure with excellent filter characteristics.

This slim-line antenna can fit in to just about any setting.  The complete antenna measures only 5.5” x 1.6” x 0.7” (14 cm x 4 cm x 2 cm).
